Make: JUARISTI

Model: 6

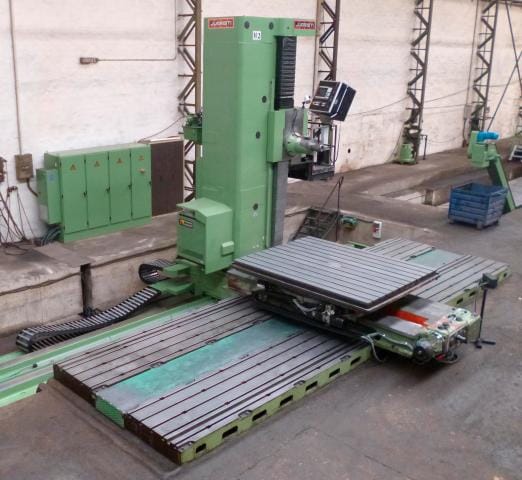

Specification: JUARISTI 6″ CNC FLOOR TYPE HORIZONTAL BORING MILL Spindle Diameter: 6″. – Table Longitudinal Traverse (X Axis): 8.000 mm. – Vertical Traverse (Y Axis): 3.000 mm. – Column Transversal Traverse (W Axis): 500 mm. – Quill Exit Traverse (Z Axis): 1.000 mm. – Tool ISO 50 DIN 2080 – Range Speeds of Head 2 – Low Range 5 – 399 r.p.m. – High Range 399 – 1.600 r.p.m. – Turning Speeds in Constant Power 99 ? 1.600 r.p.m. – Maximum Power 37 Kw. – Maximum Torque 3.560 Nm, – Axis Speed 10.000 mm/min. – Longitudinal Chip Conveyor INCLUDED – Operating Position ? Column Side INCLUDED – Head Extension INCLUDED – Stoller Table Surface 8.000 x 2.600 mm. – CNC FAGOR 8050 M – Colour GREEN RAL 6011 – Total Power Installed 50 Kva. Technical details of Rotary Table – Table Longitudinal Traverse 1.800 mm. – Turning Table Manual Motorised – Table Surface 2000 x 2500 mm. – T Slots Number 11 Slots – Table Maximum Carrying Load 20.000 Kg. – FAGOR (2 Axis) Display INCLUDED

Year: 2015

Condition: Used

Price: Contact Us
